Senada Throttle Grip Ultimate Guide: Take Full Control of Your Power

1. What Is an E‑Bike Throttle Grip?

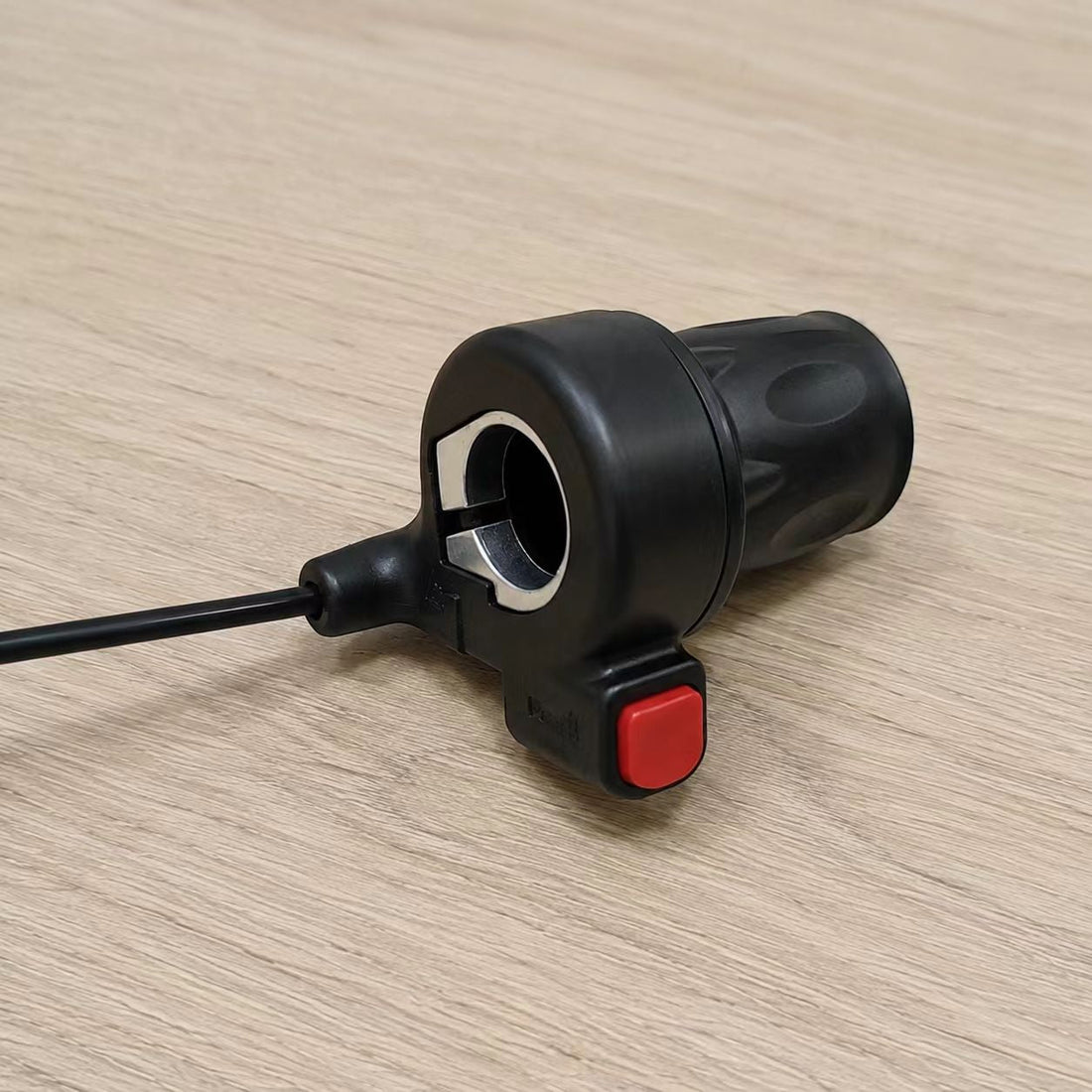

The throttle grip is a device mounted on the handlebar that controls the motor’s power output. When you twist the grip, it sends a signal to the controller, which then delivers a proportional amount of electrical power to the motor.

In simple terms, the throttle is your direct line of communication with the motor — the more you twist, the more power the motor delivers.

Senada’s entire lineup uses a half‑twist throttle. This design splits the right‑hand grip into two sections: the inner portion rotates to control the throttle, while the outer portion stays fixed, allowing you to maintain a secure hold on the handlebar even while accelerating.

2. Why Did Senada Choose a Half‑Twist Throttle?

The half‑twist throttle strikes the perfect balance between a full‑twist and a thumb throttle. Senada’s choice is backed by solid reasoning:

The biggest advantage of the half‑twist throttle is that your fingers stay firmly wrapped around the handlebar, while only the inner part of your palm twists to control speed. On rough terrain, this is safer than a full‑twist; on long rides, it’s more comfortable than a thumb throttle. Many Senada owners report that throttle control is “very smooth,” making the riding experience effortless and enjoyable.

3. Senada Throttle Grip Technical Specifications

Here are the key specs for the genuine Senada throttle grip:

The built‑in on/off switch is a particularly practical feature — you can completely disable the throttle when you don’t need power, preventing accidental acceleration.

4. How the Throttle Works: The Secret of the Hall‑Effect Sensor

At the heart of the Senada throttle is a Hall‑effect sensor.

Here’s how it works:

1. Inside the throttle, there’s a Hall sensor and a magnet.

2. When you twist the grip, the relative position between the magnet and the sensor changes.

3. The sensor converts this position change into a voltage signal between 0.8V and 4.5V.

4. The controller reads this voltage and decides how much power to send to the motor.

5. Higher voltage = more power = faster speed.

This non‑contact sensing design means no mechanical wear, resulting in long life and precise response. A standard Hall‑sensor throttle outputs around 0.8V at rest and about 4.5V at full twist.

5. How Throttle Use Affects Range

How you use the throttle directly impacts your riding range. Take the Senada Saber as an example:

Pure throttle mode cuts the range by nearly half compared to pedal assist. That doesn’t mean the throttle is “bad” — it just consumes power differently. When you need a quick start, a steep climb, or simply want to relax, the throttle is your best friend. On flat roads, combining it with pedal assist will take you much farther.

6. Installation & Replacement Guide

If you need to replace your Senada throttle grip, follow these basic steps:

1. Disconnect the battery — safety comes first.

2. Remove the old throttle: loosen the fixing screws and unplug the connector.

3. Install the new throttle: align the arrows and pins, ensuring a secure connection.

4. Position it comfortably: adjust to your preferred angle, then tighten the screws.

5. Reconnect the battery and test.

The genuine Senada throttle grip costs $80.00 and comes with a 1‑year warranty. Always choose an original part to guarantee perfect compatibility with your 48V system.

7. Common Issues & Troubleshooting

Error Codes 04 and 05

When your Senada display shows 04 or 05, it indicates a throttle abnormality. Code 04 usually means “throttle not returned to the correct position.”

Troubleshooting steps:

1. Re‑plug the throttle connector — make sure the arrows are aligned and the pins are not bent or damaged.

2. Inspect the pins — bent or broken pins cause poor contact.

3. If the above doesn’t help, disconnect the throttle and see if the error disappears. If it does, the throttle itself needs replacement.

Other Common Symptoms

• No throttle response: Check for loose connections, or measure the Hall sensor output voltage.

• Jerky acceleration: Possibly caused by poor contact in the wiring or a faulty internal sensor.

• Throttle sticks and won’t return: Look for debris blocking the grip, or a failed internal return spring.

8. Daily Care Tips

1. Keep it clean: Wipe the throttle with a dry cloth regularly to prevent dust and mud from getting inside.

2. Avoid excessive force: The throttle is designed to be light and responsive — no need to twist hard.

3. Inspect the cable: Periodically check the throttle cable for wear or looseness.

4. Protect from water: While Senada throttles are somewhat water‑resistant, avoid prolonged exposure to heavy rain.
